Columbus continues to plan and build stormwater projects meant to deal with neighborhood flooding, drainage limits, and old pipes and channels. As these projects move from early planning into design, topographic surveys give engineers the ground detail they need to see what’s really there.
If you own property, manage a construction project, or work in land development near a flood-mitigation area, here’s what you should know about why these surveys matter and what they actually cover.
Flood-Control Design Begins With the Ground Between the Contour Lines
Knowing a property sits in a mapped flood zone is only the start. That map tells engineers where water has been recorded, not how it moves across the ground today.
To design a fix, engineers need real numbers. They need to know how the land rises and falls inch by inch. They need pavement edges, small channels, embankments, buildings, and drainage paths marked out clearly.
A topographic survey records what’s already there. It does not predict flooding on its own, and it does not pick the final design. It gives the engineer a true picture of the site so they can compare options and build from solid ground data instead of guesswork.
Why Street Crowns and Curb Openings Matter to a Larger Flood Plan
Some of the smallest details on a street can change how a flood plan works. A few examples:
- The crown and cross slope of the road
- Gutter elevations
- Curb openings
- Driveway aprons
- Low points near intersections
- Where streets connect to drainage structures
None of these seem like much on their own. But water follows the path of least resistance. A curb cut in the wrong spot, or a low point at an intersection, can send water somewhere nobody planned for.
That’s why a project built around one storm sewer or one drainage basin often depends on the streets and yards around it too. Surveyors don’t just look at the pipe. They look at everything water might touch on its way there.
Survey Limits Often Extend Beyond the Visible Construction Area

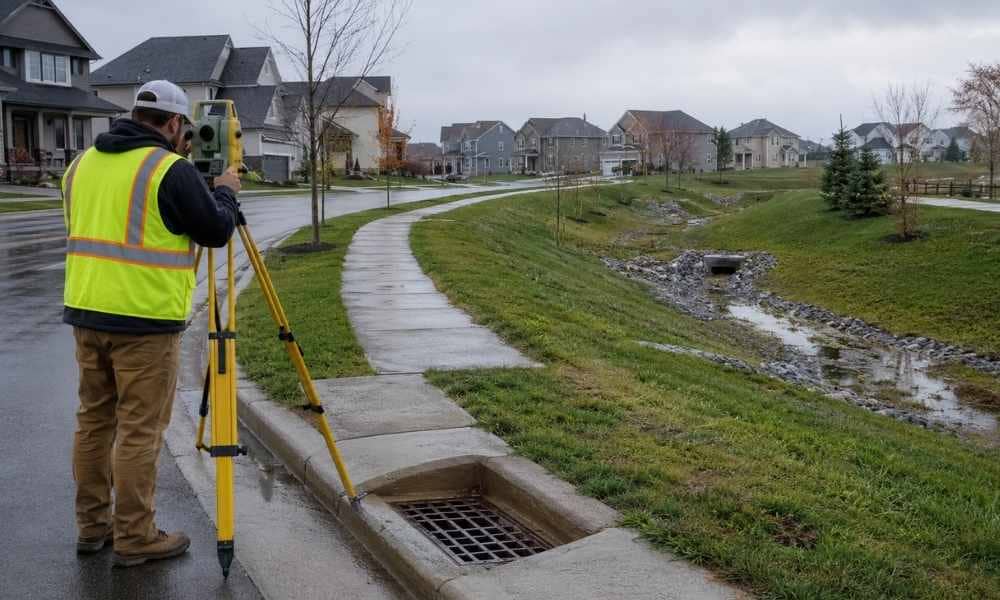

If you see survey crews working well past the fence line of a project, there’s a reason for it. Flood-control design often needs information from outside the spot where digging will actually happen.
Crews may need to record:
- Upstream areas that feed water into the site
- Downstream outlets where water eventually leaves
- Tie-in elevations at the edges of the project
- Adjoining grades on neighboring lots
- Nearby drainage structures that connect to the system
This wider view helps the engineer understand the whole picture, not just the piece inside the property line. One note worth making clear: a survey crew walking or measuring a property does not grant any construction rights and does not change who owns the land. It’s a measurement task, nothing more.
Existing Utilities Can Reshape a Proposed Mitigation Project
Buried pipes and cables change what’s possible on a site. During planning, surveyors record the visible signs of utilities, things like:
- Manholes
- Catch basins
- Utility poles
- Valve covers
These visible features get paired with utility records from the companies that own them. Together, that gives engineers a working picture of what’s underground.
But here’s the catch: a standard topographic survey does not locate every buried line. It can’t. Some utilities sit too deep, some records are outdated, and some lines were never mapped well to begin with. Projects that need a fuller picture often call for a separate utility-designation service or subsurface investigation before design moves forward.
The Survey Becomes a Baseline for Design Revisions and Construction Checks
Once the topographic survey is done, it becomes the shared starting point. Engineers, the city, contractors, and anyone else working on the project can point to the same set of numbers.
That baseline can support:
- Early design alternatives
- Inputs for drainage models
- Grading concepts
- Permit and plan drawings
- Layout work during construction
- A comparison point once the work is finished
How much of this a single survey covers depends on the project. A small drainage repair needs less than a multi-block stormwater project. The engineer or public agency running the project sets the exact scope, based on what the design actually requires.
Frequently Asked Questions
Are topographic surveys required for every flood-mitigation project?
Not automatically. It depends on the type of work, what mapping already exists, how complex the site is, and what the responsible engineer or agency asks for. Projects with grading, drainage structures, channels, roads, or ties into existing systems usually need detailed elevation data.
Can publicly available elevation data replace a field topographic survey?
Public elevation data helps during early planning. But it often lacks the detail, current accuracy, or exact feature locations that final design needs. Most project teams still need field-collected data before relying on elevations for engineering or construction work.
Why might surveyors collect elevations beyond the reported flooding area?
Water doesn’t stop at a property line. Survey limits often stretch out to cover upstream grades, downstream outlets, street elevations, and drainage connections that could shape the final design.
Does a topographic survey identify where floodwater will go during a major storm?
The survey gives terrain and feature data that may feed into a drainage or hydraulic study. Predicting where water actually goes in a storm takes engineering review, rainfall assumptions, and often computer modeling on top of the survey data.
Can one topographic survey be used through the entire project?
Sometimes, but not always. Design changes, construction disturbance, a bigger project area, older data, or new agency requirements can all create a need for more survey work. Project teams should check whether the original survey still fits the next phase before moving ahead.
